Ridgeway Repeater Group
Analogue Voice -
DMR -
APRS -
Echolink
Providing amateur radio communications across Swindon and North Wiltshire
Repeaters extend the range of communications and are a very popular means of communication for radio amateurs.
Our Repeaters
Repeater
Output frequency
Input frequency
Access
Channel
GB3WH - FM
145.650 MHz
145.050 MHz
ctcss 118.8 Hz
RV52
GB3TD - FM
438.3875 MHz
430.7875 MHz
ctcss118.8 Hz
UR63
GB7TC - DMR
439.5250 MHz
430.5250 MHz
Colour Code 2
DVU42
GB7NW - C4FM
439.7250 MHz
430.7250 MHz
DVU58
MB7USW - APRS
144.800 MHz
144.800 MHz
NOTES:
GB3WH and GB3TD ctcss are both encode and decode.
GB3TD is connected to the Echolink Network, node ID 43307.
GB7TC is connected to the Phoenix DMR Network.
GB7NW is connected to Yaesu's WIRES-X Network, room number 87529
To see more details on each repeater, select the tabs at the top of this page.
The cost of running our repeater is increasing,
we need your support to keep them on the air.
THANK YOU FOR YOUR SUPPORT
STATUS
All repeaters are operational
GB7TC Internet Connection is Intermittent
NETS
GB3WH - Swindon and District Amateur Radio Club net
Mondays at 19:30 hours.
GB3TD - Morning walkers net (weather permitting).
Mondays at 19:30 hours.
Coverage
-

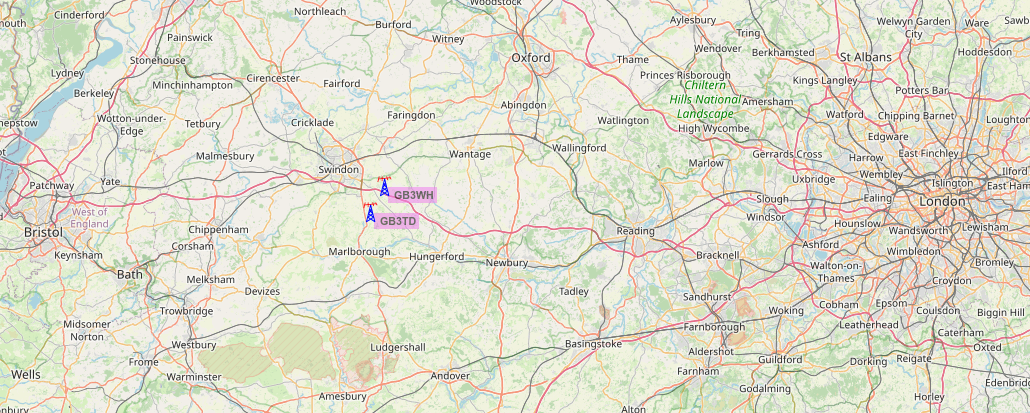

Our repeaters are located on the ridge of chalk hills to the southeast of the town of Swindon.
This ridge is a part of the old ancient 87 miles (140 km) path runing from Avebury, Wiltshire to Ivinghoe Beacon, Buckinghamshire known as the Ridgeway.
This high advantage point gives good coverage across North Wiltshire, South Gloucestershire, South Oxfordshire and West Berkshire.
There is coverage along the M4 motorway for 49 miles from junction 13 in the east, all the way to junction 18 in the west.
Reasonable coverage along the A419 truck road from junction 15 of the M4 to towards the M5 and the A420 road from Swindon towards Oxford.
[GB3TD and GB7TC Coverage Map] [GB3WH Coverage Map] [Map and List of All UK Repeaters]
Support
-
Financial support comes from membership fees and donations. Technical support is provided by a group of enthusiastic radio
amateurs who have the responsiblity of
running, maintaining and operating the repeaters and
meet regularly to discuss any issues relating to the upkeep and
maintenance of the repeaters.
If you would like to join the Ridgeway Repeater Group then please visit our membership page.
Donations are always wecome and can be made via Paypal, please click the "Donate" button below:-
You can contact the Ridgeway Repeater Group at:- info at rrg. org. uk
-
